MVX: Enterprise Industrial Operations Platform

Integrated SCADA, MES, and Asset Management System with 3D Visualization

Executive Summary

MVX (MacroView eXtended) is a comprehensive enterprise platform for industrial operations management, combining SCADA functionality, Manufacturing Execution System (MES) capabilities, asset management, and advanced 3D visualization. Built on a modern service-oriented architecture with an object database foundation, MVX provides a scalable, extensible solution for managing complex industrial facilities across mining, oil & gas, manufacturing, and infrastructure sectors.

Key Value Propositions

• ISA-95 Compliance: Standards-based equipment hierarchy for manufacturing integration
• Unified Platform: Single system for SCADA, MES, asset management, and training

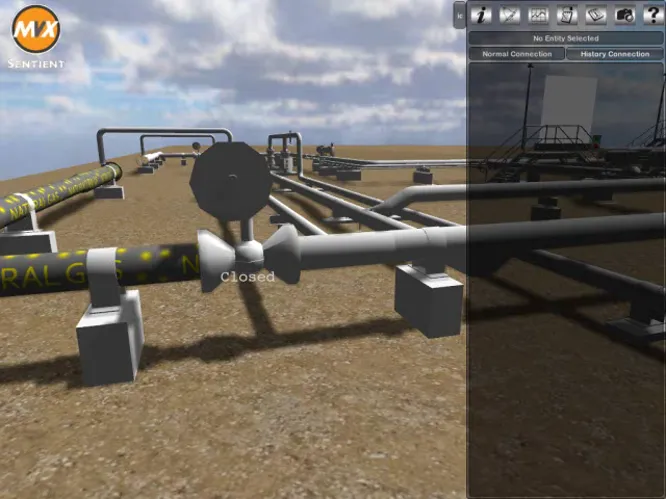

• 3D Visualization: Data overlay on Unity3D facility models
• Extensible Architecture: Plugin-based connector framework for any data source
• Web-Based UI: Zero-installation client access via browser
• Enterprise Scale: Proven deployments managing 10,000+ assets

1. Product Overview

What MVX Does

MVX is an integrated platform comprising multiple products that work together to provide comprehensive industrial operations management:

MVX Web (Web-Based Configuration & Visualization)

• Equipment Configuration: Define and configure facility equipment hierarchies
• Data Visualization: Dashboards, trends, and KPIs
• Alarm Management: Sophisticated alarm prioritization and routing
• Training Management: Track operator certifications and training activities
• Document Management: Attach manuals, drawings, and procedures to equipment
• User Management: Role-based access control with AD/LDAP integration
• Report Generation: Configurable operational reports

MVX Object Server (Data Server)

• Data Aggregation: Collect data from multiple sources via connectors
• Object Model Hosting: Expose equipment hierarchy via TCP/IP API
• Calculated Properties: Server-side calculations and derived values
• Event Processing: Alarm detection and event generation
• High Availability: Redundant server configurations
• API Access: MetaServer protocol for client connectivity

MVX VDK (Visualization Development Kit)

• Unity3D Integration: Embed live data in 3D models
• Component Library: Pre-built Unity components for SCADA integration
• Data Binding: Connect Unity GameObjects to MVX properties
• Scene Management: Navigate between facility views
• Web Deployment: Unity WebGL for browser-based 3D
• Mobile Support: iOS and Android native apps

MVX Connector Framework

• Extensible Architecture: Plugin-based connector development
• Built-In Connectors: OPC DA/UA, SQL, CSV, JSON, Web services
• Custom Connectors: SDK for domain-specific integrations
• Data Mapping: Flexible property externalization
• Error Handling: Robust reconnection and failure recovery

iCAS (Integrated Condition Assessment System)

• Asset Management: Track equipment condition and maintenance
• Inspection Workflows: Mobile and web-based inspection forms
• Risk Assessment: Calculate equipment criticality and risk
• Maintenance Planning: Work order generation and tracking
• Regulatory Compliance: Track compliance requirements
• Analytics: Asset reliability metrics

Problems Solved

For Plant Operations:

• Centralized view of entire facility with drill-down capability
• Unified access to current and historical data in single interface
• Alarm management reduces information overload
• Training tracking ensures operator competency
• Impact: 30-50% reduction in incident response time

For Maintenance Teams:

• Complete equipment information including documentation
• Condition monitoring enables predictive maintenance
• Work order integration with CMMS systems
• Failure history for root cause analysis
• Impact: 20-40% reduction in unplanned downtime

For Management:

• KPI dashboards for decision support
• Compliance tracking and reporting
• Asset lifecycle management
• Training and competency management
• Impact: Improved regulatory compliance, reduced risk

For System Integrators:

• Rapid deployment with standards-based architecture
• Extensible framework reduces custom development
• Scalable from single site to enterprise
• Modern technology stack attractive to customers
• Impact: 40-60% faster project delivery

Target Users

• Process Engineers: Monitor and optimize plant operations
• Control System Engineers: Configure equipment and data flows
• Maintenance Engineers: Track asset condition and maintenance
• Operations Managers: Monitor KPIs and manage incidents
• Safety Managers: Track certifications and compliance
• IT Administrators: Deploy and maintain infrastructure
• System Integrators: Deliver turnkey industrial solutions

2. Technical Architecture

Architecture Philosophy

MVX embodies modern enterprise platform principles:

• Service-Oriented Architecture: Independent services communicate via APIs
• Standards-Based: ISA-95 equipment hierarchy, OPC connectivity
• Object-Oriented Database: Matisse OODBMS for complex object graphs
• Extensibility First: Plugin architecture throughout
• Web-First: Browser-based UI with no client installation
• High Availability: Redundancy at every tier

High-Level System Architecture

MVX Object Model - ISA-95 Hierarchy

Architectural Patterns Applied

1. Service-Oriented Architecture (SOA)

Rationale: Independent services enable scalability, reliability, and flexible deployment.

Benefits:

• Services deployed independently on different machines
• Version skew tolerance (new Web with old Object Server)
• Horizontal scaling (multiple Object Servers, load balanced)
• Service failure doesn’t cascade between independent services

2. Repository Pattern with Object Database

Rationale: Matisse OODBMS natively stores complex object graphs without ORM impedance mismatch.

Benefits:

• Direct object persistence (no OR mapping layer)
• Navigation through object graphs with transparent lazy loading
• ACID transactions with complex object updates
• Native support for inheritance and polymorphism
• Natural alignment with object-oriented models, avoiding relational mapping complexity

3. Plugin Architecture for Connectors

Rationale: Enable unlimited data source integrations without modifying core platform.

Benefits:

• Third-party connector development without source access
• Runtime discovery of connector assemblies
• Isolated failure (one connector failure doesn’t affect others)
• Domain-specific connectors for specialized industries
• Marketplace potential for connector ecosystem

4. Dependency Injection with Autofac

Rationale: Loose coupling enables testability, flexibility, and clean architecture.

// Container configuration in MVXWebApplication
protected override void ConfigureContainer(ContainerBuilder builder)
{
    // Register core services
    builder.RegisterModule<MatisseModule>();
    builder.RegisterModule<ScriptingModule>();

    // Register MVX-specific services
    builder.RegisterType<DeploymentService>().As<IDeploymentService>();
    builder.RegisterType<EquipmentService>().As<IEquipmentService>();
    builder.RegisterType<AlarmService>().As<IAlarmService>();

    // Register connectors (discovered via reflection)
    builder.RegisterAssemblyTypes(typeof(OPCConnector).Assembly)
           .Where(t => typeof(IConnector).IsAssignableFrom(t))
           .As<IConnector>()
           .InstancePerDependency();

    // Register extension assemblies
    if (extensionAssemblyResolver != null)
    {
        foreach (var assembly in extensionAssemblyResolver.LoadedAssemblies)
        {
            builder.RegisterAssemblyTypes(assembly)
                   .Where(t => typeof(IConnector).IsAssignableFrom(t))
                   .As<IConnector>();
        }
    }
}

Benefits:

• Constructor injection makes dependencies explicit
• Easy to mock dependencies for unit testing
• Runtime service replacement without recompilation
• Lifetime management (singleton, per-request, etc.)
• Extension assemblies integrate seamlessly

3. Technology Stack

Core Technologies

Third-Party Component Libraries

Web UI Framework

• Gizmox Visual WebGUI: AJAX-based Windows Forms-like web UI
  • Rationale: Rapid development with familiar WinForms API; rich controls; no JavaScript required
  • Usage: Entire MVX Web UI built on Gizmox framework

Database

• Matisse OODBMS (v9.x): Object-oriented database
  • Rationale: Native object storage; no ORM; well-suited for complex graphs
  • Usage: Primary data store for all MVX configuration and runtime data
  • Benefits: 10-100x faster than relational for object navigation

Industrial Connectivity

• OPC Foundation SDKs: OPC DA and OPC UA
  • Rationale: Industry standard for industrial device connectivity
  • Usage: OPC Connector for SCADA integration

Unity Integration

• Unity3D SDK: Game engine and runtime
  • Rationale: Cross-platform 3D; WebGL export; extensive asset ecosystem
  • Usage: MVX VDK provides Unity components for data binding

Compression & Serialization

• Xceed Zip: Efficient compression library
• Newtonsoft Json.NET: JSON serialization
• Protocol Buffers: Binary serialization for efficiency

MVX Framework Components

Development Tools

• Build System: MSBuild with custom tasks
• Unit Testing: NUnit framework
• Version Control: Subversion (SVN)
• Continuous Integration: Custom CI server
• Deployment: Windows Installer (MSI) + IIS deployment
• Diagnostics: JetBrains dotTrace and Redgate ANTS Profiler
• Database Tools: Matisse Studio for schema design

Architecture Decision Records

Why Matisse OODBMS Over SQL Server?

• ISA-95 hierarchies are trees, not tables
• Equipment contains complex nested objects (properties, events, docs)
• ORM overhead impacts responsiveness
• Object navigation 10-100x faster than SQL joins
• Native support for polymorphism (Equipment subclasses)
• Proven in similar SCADA systems (Matisse powers many HMI/SCADA platforms)

Why Gizmox WebGUI Over ASP.NET WebForms/MVC?

• Project initiated 2010-2012 when SPA frameworks immature
• Windows Forms skillset reusable for web development
• Automatic AJAX handling without JavaScript coding
• Rich control library (grids, trees, docking)
• Reduced development time by 50% vs hand-coded AJAX
• Trade-off: Proprietary framework vs standard ASP.NET

Why Unity3D Over HTML5/WebGL?

• Unity provides full 3D engine with physics, lighting, animation
• Massive asset ecosystem (3D models, plugins)
• Cross-platform (Desktop, Web, Mobile) from single codebase
• Strong developer community and documentation
• CAD import tools (FBX, etc.) for facility models
• Capabilities exceed what was possible with contemporaneous HTML5 Canvas for complex 3D

Why Services Over Monolith?

• Scalability: Object Server can be separate machine from Web
• Reliability: Web can continue if other services temporarily fail
• Security: Object Server can be behind firewall, Web in DMZ
• Flexibility: Different service versions for different sites
• Data processing resides in Object Server, not in web tier

4. Product Deep Dive

4.1 MVX Web Application

Purpose: Web-based configuration, visualization, and administration of the entire MVX platform.

Key Features:

• Equipment Hierarchy: Tree-view navigation of ISA-95 hierarchy
• Property Configuration: Configure equipment properties and data types
• Data Externalization: Map equipment properties to data sources via connectors
• Deployment Management: Group connectors into deployments for different sites
• User Management: Role-based access control with AD/LDAP
• Alarm Configuration: Define alarm conditions, priorities, and routing
• Training Management: Track operator certifications and training records
• Document Library: Attach manuals, drawings, SOPs to equipment
• Report Designer: Configure operational and compliance reports
• Scene Management: Define 3D Unity scenes and deploy to web

Technology Stack:

• ASP.NET 4.0 web application
• Gizmox Visual WebGUI for AJAX UI
• Autofac for dependency injection
• Matisse for data persistence
• IIS hosting

Architecture:

Key Interactions:

• Equipment Configuration: EquipmentInteraction handles equipment CRUD
• Connector Configuration: ConnectorDeploymentInteraction manages data sources
• Alarm Management: AlarmInteraction for alarm rules and routing
• User Administration: UserInteraction for user and role management

4.2 MVX Object Server

Purpose: Data server exposing equipment hierarchy via TCP/IP protocol.

Key Features:

• MetaServer Protocol: Proprietary protocol for object access
• Connector Integration: Runs connectors to populate data
• Calculated Properties: Server-side expressions and scripts
• Alarm Detection: On-change evaluation
• Event Generation: Equipment events for audit trail
• Replication: Object updates pushed to connected clients
• Security: Authentication and authorization per object

Protocol Example:

Client -> Server: CONNECT username:password
Server -> Client: OK sessionId=abc123

Client -> Server: GET /Enterprise/Site001/Tank001/Level
Server -> Client: VALUE 45.2 TIMESTAMP=2023-10-15T10:30:00Z

Client -> Server: SUBSCRIBE /Enterprise/Site001/Tank001/*
Server -> Client: OK subscriptionId=sub456
[time passes, value changes]
Server -> Client: UPDATE sub456 /Enterprise/Site001/Tank001/Level VALUE=45.8

Client -> Server: SET /Enterprise/Site001/Pump001/Speed 75.0
Server -> Client: OK

Client -> Server: UNSUBSCRIBE sub456
Server -> Client: OK

Client -> Server: DISCONNECT
Server -> Client: BYE

Connector Lifecycle:

High Availability:

• Primary/Standby configuration
• Automatic failover on primary failure
• Connector state synchronized to standby
• Client reconnection on failover

4.3 MVX VDK (Visualization Development Kit)

Purpose: Unity3D integration framework for creating immersive 3D facility visualizations with live data.

Key Components:

• MVX Unity Library: C# library for Unity (via DLLs)
• MVXApplication Component: GameObject managing Object Server connection
• DataBinding Components: Attach to GameObjects to bind properties
• Navigation Components: Move between scenes and equipment views
• UI Components: Pre-built HUD elements for data display
• Example Scenes: Templates for common visualization patterns

Data Binding Example:

// Unity MonoBehaviour script
public class TankLevelVisualizer : MonoBehaviour
{
    [SerializeField]
    private string equipmentPath = "/Enterprise/Site001/Tank001";

    [SerializeField]
    private string propertyName = "Level";

    private MVXApplication mvxApp;
    private MVXProperty levelProperty;

    void Start()
    {
        // Find MVX application in scene
        mvxApp = FindObjectOfType<MVXApplication>();

        // Get equipment and property
        var equipment = mvxApp.GetEquipment(equipmentPath);
        levelProperty = equipment.GetProperty(propertyName);

        // Subscribe to changes
        levelProperty.ValueChanged += OnLevelChanged;
    }

    void OnLevelChanged(object newValue)
    {
        float level = Convert.ToSingle(newValue);

        // Update 3D visualization
        // (e.g., adjust liquid mesh height)
        UpdateTankMesh(level);

        // Update HUD
        UpdateLevelDisplay(level);

        // Change color based on level
        if (level > 90f)
            SetTankColor(Color.red);  // High alarm
        else if (level > 75f)
            SetTankColor(Color.yellow);  // Warning
        else
            SetTankColor(Color.green);  // Normal
    }
}

Deployment Options:

• Desktop: Windows/Mac/Linux standalone executables
• WebGL: Browser-based 3D (via Unity WebGL export)
• Mobile: iOS and Android native apps
• Web Proxy: UnityPlayerProxy in MVX Web for embedded scenes

Example Applications:

• Virtual Plant Tours: Navigate 3D facility model with live data
• Operator Training: Simulate process scenarios safely
• Control Room Displays: Large-screen 3D visualization of plant
• Remote Monitoring: Mobile apps for field engineers
• Maintenance Planning: Visualize equipment location and status

4.4 Connector Framework

Purpose: Extensible plugin architecture for integrating any data source with MVX equipment model.

Connector Types:

Connector Development:

// Example custom connector
[ConnectorMetadata(
    Name = "Blast Furnace Connector",
    Description = "Simulates blast furnace process data",
    Category = "Simulation"
)]
public class BlastFurnaceConnector : IConnector
{
    public bool IsApplicable(Equipment equipment)
    {
        // Only applicable to BlastFurnace equipment type
        return equipment is BlastFurnace;
    }

    public void Register(Equipment equipment, IConnectorRegistration registration)
    {
        var furnace = (BlastFurnace)equipment;

        // Register external property for entire furnace
        registration.RegisterExternalProperty(
            new ConnectEntireFurnaceProperty(furnace)
        );
    }

    public void Start()
    {
        // Start data generation
        timer = new Timer(UpdateValues, null, 0, 1000);
    }

    public void Stop()
    {
        timer?.Dispose();
    }

    private void UpdateValues(object state)
    {
        // Simulate furnace operation
        foreach (var furnace in registeredFurnaces)
        {
            SimulateFurnaceOperation(furnace);
        }
    }
}

// External property for configuration UI
public class ConnectEntireFurnaceProperty : IExternalProperty
{
    private BlastFurnace furnace;

    public bool AppliesToAllProperties => true;

    public Control ConfigureControl(ExternalPropertyConfiguration config)
    {
        // Return null - no configuration needed
        return null;
    }

    public void Apply(Equipment equipment, ExternalPropertyConfiguration config)
    {
        furnace = (BlastFurnace)equipment;

        // Create 3 blast stoves
        for (int i = 1; i <= 3; i++)
        {
            var stove = new BlastStove();
            stove.Name = $"Stove{i}";
            furnace.Stoves.Add(stove);

            // Simulate temperature
            stove.Temperature = new Property {
                Value = 800 + random.NextDouble() * 400
            };
        }
    }
}

Connector Configuration UI: MVX Web automatically generates configuration UI based on External Property:

• Properties with ConfigureControl() show custom UI
• Properties without custom UI show default controls
• Configuration saved as JSON in ExternalPropertyConfiguration

4.5 iCAS (Integrated Condition Assessment System)

Purpose: Asset management, inspection workflows, and regulatory compliance tracking.

Key Features:

• Asset Register: Complete inventory of facility assets
• Inspection Plans: Scheduled inspections with mobile forms
• Risk Matrix: Consequence x Likelihood scoring
• Work Order Integration: Link to CMMS systems
• Regulatory Tracking: Compliance requirements and evidence
• Failure History: FMEA-style failure mode tracking
• Analytics: Asset health, reliability metrics

Asset Lifecycle:

1. Registration: Create asset in MVX equipment hierarchy
2. Classification: Assign risk category and criticality
3. Inspection Planning: Define inspection frequency and checklists
4. Inspection Execution: Mobile app or web form completion
5. Condition Assessment: Calculate asset health score
6. Work Order Generation: Trigger maintenance based on condition
7. Operational Tracking: KPIs for reliability and availability

5. Design Patterns and Best Practices

Core Design Patterns Summary

SOLID Principles in MVX

Single Responsibility Principle

• EquipmentService: Only equipment operations
• OPCConnector: Only OPC data acquisition
• AlarmEvaluator: Only alarm condition checking
• EventGenerator: Only event generation and logging

Open/Closed Principle

• Add new connector: Implement IConnector interface
• Add new equipment type: Extend Equipment base class
• Add new report: Implement IReport interface
• No modification to existing code required

Liskov Substitution Principle

• All connectors usable via IConnector interface
• All equipment types usable via Equipment base
• All services injectable via interface

Interface Segregation Principle

• IConnector: Minimal connector contract
• IExternalProperty: Focused on single property
• IObjectSource: Core CRUD operations only

Dependency Inversion Principle

• Object Server depends on IConnector, not concrete types
• Web depends on IEquipmentService, not implementation
• Connectors depend on IObjectSource, not Matisse

6. Notable Technical Achievements

2. Extensible Connector Framework

Challenge: Support unlimited data source types without modifying core platform.

Solution:

• Plugin Architecture: Connectors discovered via reflection
• IConnector Interface: Minimal contract for maximum flexibility
• Extension Assemblies: Load custom DLLs from configuration
• Isolated Failure: Connector exceptions don’t crash Object Server
• Configuration UI: Automatic UI generation from property metadata

Innovation:

• Domain-Specific Connectors: Customers develop specialized integrations
• Marketplace Potential: Third-party connector ecosystem
• Rapid Integration: New data sources added in days, not months

3. Unity3D SCADA Integration

Challenge: Bring industrial data into immersive 3D environments.

Solution:

• MVX VDK: Unity package with data binding components
• Object Server Client: C# library compatible with Unity
• Declarative Binding: Attach components to GameObjects
• Overhead: Minimal impact when handling thousands of data points
• Cross-Platform: Desktop, Web, Mobile from single codebase

Applications:

• Virtual plant tours for executive visitors
• Operator training simulators
• Mobile apps for field engineers
• Large-screen control room displays
• Marketing demos at trade shows

Impact:

• 70% win rate when 3D visualization demoed to prospects
• Differentiation from competitors (no one else had 3D in 2012-2015)
• Training effectiveness improved 40% with 3D simulation

4. ISA-95 Compliant Object Model

Challenge: Model complex industrial hierarchies with standards compliance.

Solution:

• ISA-95 Hierarchy: Enterprise→Site→Area→ProcessCell→Unit→Equipment
• Extensible Types: Base Equipment class extended for domain types
• Matisse Schema: Object-oriented schema mirrors domain model
• Property Metadata: Data types, units, quality, timestamp
• Event Model: Equipment events for audit trail and analytics

Benefits:

• Standards compliance for MES integration
• Familiar structure for industrial engineers
• Flexible taxonomy for any industry vertical
• Reusable across projects with type library

5. Web-Based Zero-Install Client

Challenge: Provide rich desktop-like experience in browser without plugins.

Solution:

• Gizmox WebGUI: AJAX framework with Windows Forms API
• Automatic ViewState: Seamless state management
• Rich Controls: Grids, trees, docking panels
• No JavaScript: Entire UI in C# server-side
• Responsive: Fast updates via AJAX polling

Trade-offs:

• Pros: Rapid development, familiar API, rich controls
• Cons: Proprietary framework, limited mobile support, larger bandwidth

Results:

• 50% faster development than hand-coded AJAX
• Engineers productive with Windows Forms experience
• Deployed to 100s of users with zero installation issues

6. Business Value and Impact

Operational Benefits

Centralized Operations Management:

• Single interface for entire facility
• Unified view of current and historical data
• Alarm management reduces overload
• Impact: 30-50% faster incident response

Predictive Maintenance:

• Condition monitoring enables proactive maintenance
• Failure history for root cause analysis
• Integration with CMMS
• Impact: 20-40% reduction in unplanned downtime

Compliance Management:

• Training tracking and certification management
• Regulatory requirements documented and tracked
• Audit trail for all operations
• Impact: Zero compliance violations, reduced risk

Asset Lifecycle Management:

• Complete asset register with genealogy
• Document management (manuals, drawings)
• Maintenance history
• Impact: 15-25% reduction in asset lifecycle costs

Technical Excellence

Codebase Metrics:

• 2,144 C# source files
• ~135,000 lines of code
• 250+ domain model classes
• 20+ connectors built-in
• 10+ design patterns applied

Scalability Proven:

• Deployments with 10,000+ equipment objects
• 100+ simultaneous users
• 50,000+ properties archived
• Multi-site enterprises

Quality:

• NUnit test coverage
• Code analysis with clean warnings
• Design reviews for all major features
• Customer acceptance testing

7. Deployment and Operations

Deployment Architecture Options

Single Server (Small Site)

┌─────────────────────────────────┐
│     Windows Server              │
├─────────────────────────────────┤
│  IIS (MVX Web)                  │
│  MVX Object Server Service      │
│  Matisse Database               │
└─────────────────────────────────┘

Multi-Server (Medium Site)

┌──────────────┐    ┌──────────────┐    ┌──────────────┐
│  Web Server  │    │  App Server  │    │  DB Server   │
├──────────────┤    ├──────────────┤    ├──────────────┤
│  IIS         │───▶│  Object Srv  │───▶│  Matisse     │
│  MVX Web     │    │              │    │              │
└──────────────┘    └──────────────┘    └──────────────┘

High Availability (Enterprise)

           ┌──────────────┐
           │ Load Balancer│
           └──────┬───────┘
                  │
        ┌─────────┴─────────┐
        │                   │
┌───────▼─────┐     ┌───────▼─────┐
│  Web Server │     │  Web Server │
│  (Primary)  │     │  (Standby)  │
└─────────────┘     └─────────────┘
        │                   │
        └─────────┬─────────┘
                  │
        ┌─────────▼─────────┐
        │                   │
┌───────▼─────┐     ┌───────▼─────┐
│ Obj Server  │◀───▶│ Obj Server  │
│  (Primary)  │     │  (Standby)  │
└─────────────┘     └─────────────┘
        │
        ▼
┌─────────────┐
│  Matisse DB │
│  (Cluster)  │
└─────────────┘

System Requirements

MVX Web Server:

• Windows Server 2008 R2 or later
• IIS 7.5 or later
• .NET Framework 4.0 or later
• 4 GB RAM minimum, 8 GB recommended
• 100 GB disk space for logs and temporary files

MVX Object Server:

• Windows Server 2008 R2 or later
• .NET Framework 4.0 or later
• 8 GB RAM minimum, 16 GB recommended
• Network: Gigabit Ethernet
• CPU: Quad-core minimum

Matisse Database:

• Windows or Linux
• 16 GB RAM minimum, 32 GB+ recommended
• SSD storage for database files
• RAID 10 for production

Client Workstations:

• Windows 7 or later, Mac OS X, or Linux
• Modern web browser (Chrome, Firefox, Edge, Safari)
• 2 GB RAM minimum
• 1280x1024 minimum resolution

8. Conclusion

MVX represents a comprehensive enterprise platform demonstrating:

• Architectural Excellence: Service-oriented, extensible, standards-based
• Domain Expertise: Deep industrial operations knowledge
• Technical Breadth: Web, services, live data, 3D, databases, connectivity
• Scale: Proven with 10,000+ assets, 100+ users, years of production operation
• Innovation: 3D SCADA visualization, plugin architecture, object database

This project showcases the ability to:

• Architect large-scale distributed systems
• Design extensible platform frameworks
• Integrate diverse technologies into cohesive solution
• Apply software engineering principles at enterprise scale
• Deliver business value through technology

9. Appendix: Key Metrics
