MacroView Studio: Industrial SCADA Development Environment

Professional IDE for Industrial Automation Graphics, Reports, and Scripts

Executive Summary

MacroView Studio is a comprehensive integrated development environment (IDE) designed for creating, editing, and deploying industrial automation applications. Built on the .NET Framework, it provides engineers and developers with professional-grade tools for designing HMI/SCADA graphics, generating data-driven reports, and developing control scripts—all within a unified application framework.

Key Value Propositions

• Unified Development Environment: Single IDE for graphics, reports, and scripts eliminates tool switching
• Professional Graphics Design: 50+ widget types with visual designer for industrial HMIs
• Enterprise Reporting: Full-featured report designer with data binding and export capabilities
• Remote Development: Built-in server connectivity for developing on live systems
• Rapid Prototyping: Drag-and-drop interface accelerates development cycles
• Industrial-Grade Quality: Proven in mission-critical SCADA environments worldwide

1. Project Overview

What MacroView Studio Does

MacroView Studio is a professional development environment that enables creation of three primary asset types:

1. Dynamic Graphics (DGT Files)

• Visual HMI Designer: Drag-and-drop interface for creating operator screens
• 50+ Widget Library: Buttons, charts, gauges, meters, indicators, alarms, and custom controls
• Data Binding: Connect graphics to live SCADA data sources
• Animations & Dynamics: Rotation, movement, color changes based on real-time data
• Layer Management: Organize complex graphics with multiple layers
• Vector Graphics: Resolution-independent graphics that scale to any display

2. Data-Driven Reports (REP Files)

• Visual Report Designer: WYSIWYG editor based on ActiveReports technology
• Data Connectivity: Query SCADA historians and databases
• Export Formats: PDF, Excel, HTML, RTF, and plain text
• Parameterized Reports: Runtime parameter entry for flexible reporting
• Charts & Visualizations: Embedded charting for trend analysis
• Banding & Grouping: Professional layouts with headers, footers, and groups

3. Control Scripts (MS Files - Metascripts)

• Syntax-Highlighted Editor: Intelligent code editor with IntelliSense
• Debugging Tools: Set breakpoints, step through code, inspect variables
• Data Grid Integration: Test scripts with live data grids
• Function Libraries: Pre-built functions for SCADA operations
• Event-Driven Programming: Respond to system events and alarms

Problems Solved

For SCADA Engineers:

• Eliminates need for multiple tools (graphics, reports, scripts)
• Provides version control integration for industrial applications
• Enables rapid prototyping of operator interfaces
• Simplifies deployment with server-side file management

For System Integrators:

• Standardized development environment across projects
• Reusable component libraries accelerate delivery
• Professional-quality output impresses clients
• Integrated testing within development environment

For Operations Teams:

• Consistent look-and-feel across plant graphics
• Self-documenting reports with embedded metadata
• Easy customization without programming expertise

Target Users

• SCADA Engineers: Design HMI graphics and control logic
• Control Systems Integrators: Deploy industrial automation projects
• Report Developers: Create operational reports and dashboards
• System Administrators: Maintain and update industrial applications
• Automation Programmers: Develop control scripts and custom logic

2. Technical Architecture

Architecture Philosophy

MacroView Studio embodies enterprise IDE design principles:

• Extensible Plugin Architecture: New editors and tools integrate seamlessly
• MDI Framework: Multiple documents open simultaneously with tab management
• Separation of Concerns: Distinct editors for graphics, reports, and scripts
• Comprehensive Object Model: Domain models (DGT, Report, Metascript) with rich APIs
• Professional UI: Docking panels, toolbars, property grids, and tool palettes
• Server-Centric Design: Remote file operations and live SCADA connectivity

High-Level System Architecture

Architectural Patterns Applied

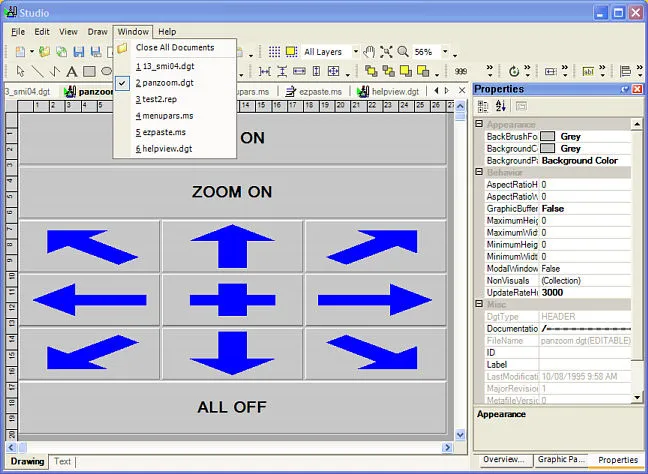

1. Multiple Document Interface (MDI) with Tabbed Management

Rationale: Enables simultaneous editing of multiple files while maintaining a cohesive workspace.

Benefits:

• Multiple files open simultaneously
• Context-sensitive menus adapt to active document
• Unified property editor reflects current selection
• Tab-based navigation for rapid switching

2. Strategy Pattern for File Editors

Rationale: Different file types require specialized editors with common interface.

Benefits:

• Unified file operations across editor types
• Easy addition of new editor types
• Polymorphic handling in main form
• Consistent user experience

3. Composite Pattern for Graphics Hierarchy

Rationale: Graphics contain nested groups, widgets, and primitives in tree structure.

Benefits:

• Uniform treatment of individual objects and groups
• Recursive operations (move, rotate, delete) on hierarchies
• Simplified persistence (save/load entire tree)
• Flexible grouping and ungrouping

4. Template Method Pattern for File Operations

Rationale: Common save/load workflow with editor-specific customization points.

// Base pattern in IStudioFileEditor implementations
public abstract class BaseEditor : Form
{
    // Template method defines overall structure
    public void Save()
    {
        if (!ValidateBeforeSave())
            return;

        PrepareForSave();

        try
        {
            PerformSave(EditedFile);
            OnSaveSucceeded();
        }
        catch (Exception ex)
        {
            HandleSaveError(ex);
        }
        finally
        {
            CleanupAfterSave();
        }
    }

    // Hook methods for customization
    protected virtual bool ValidateBeforeSave() => true;
    protected virtual void PrepareForSave() { }
    protected abstract void PerformSave(IFile file);
    protected virtual void OnSaveSucceeded() { }
    protected virtual void HandleSaveError(Exception ex) { }
    protected virtual void CleanupAfterSave() { }
}

Benefits:

• Consistent save/load behavior across editors
• Centralized error handling
• Easy to add pre/post save hooks
• Testable save workflow

3. Technology Stack

Core Technologies

Third-Party Component Libraries

Graphics & Diagramming

• Syncfusion Essential Diagram (v9.1): Professional diagramming engine
  • Rationale: Industry-leading vector graphics; extensive node/connector library; high performance
  • Usage: Core graphics editor with custom widget extensions

Reporting

• ActiveReports (v6.2): Report designer and viewer
  • Rationale: Professional report designer; multiple export formats; data binding
  • Usage: Complete reporting subsystem from design to runtime

UI Components

• Syncfusion Essential Studio (v9.1): Professional UI controls

  • Components: DockingManager, BarManager, TabbedMDIManager, EditControl, PropertyEditor
  • Rationale: Enterprise-grade docking framework; Office-style toolbars; syntax highlighting

• Infragistics UltraWin Suite (v10.3): Advanced grids and navigation

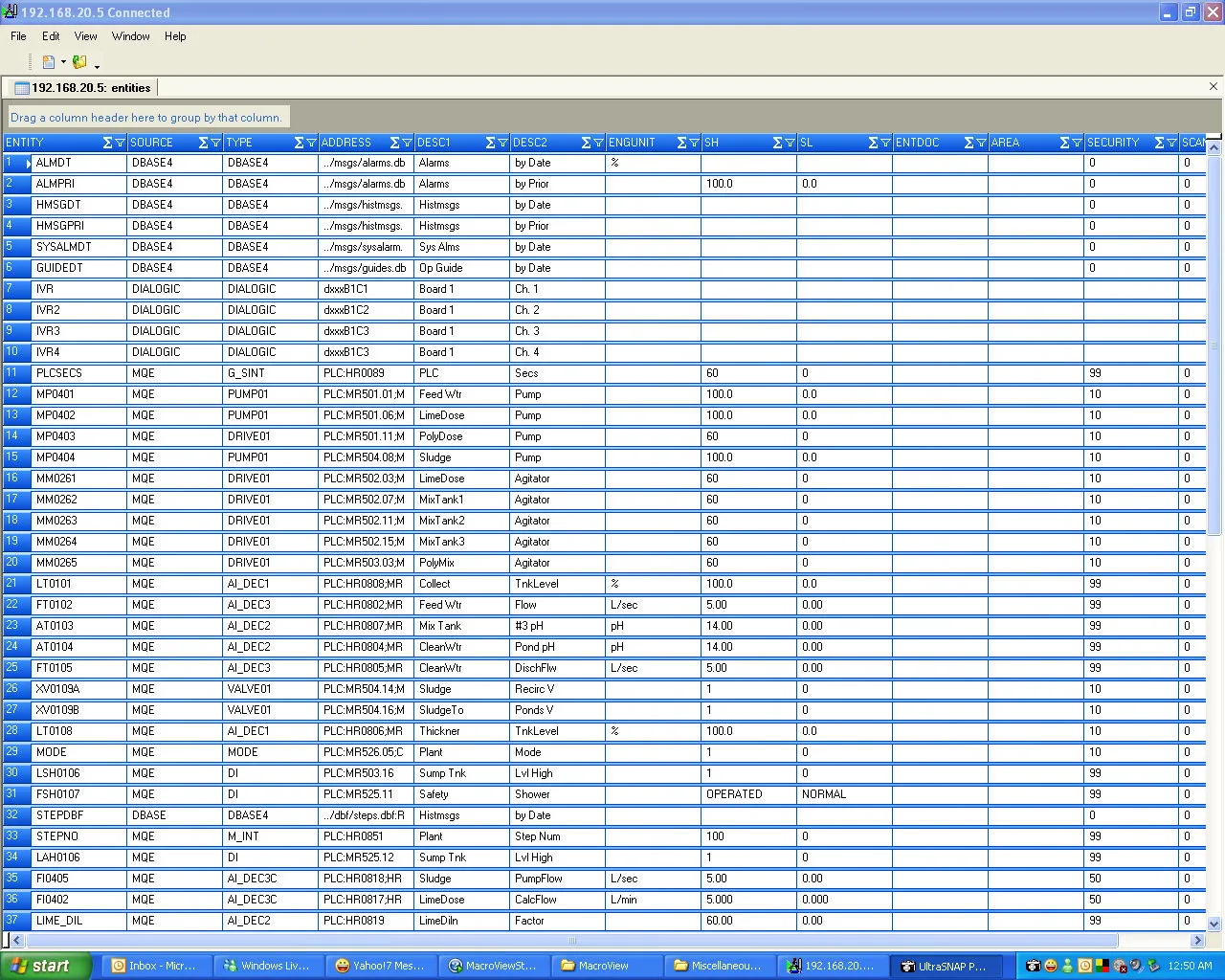

  • Components: UltraGrid for data display and file browsing
  • Rationale: High-performance grid for large datasets; Excel-like features

Remote Access

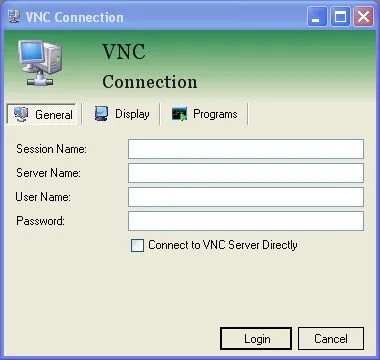

• Custom VNC Implementation: Remote desktop protocol
  • Components: VNC protocol library, VncForm viewer
  • Rationale: Enables remote HMI access directly in IDE; essential for remote debugging

MacroView Framework Integration

• MacroView.Data: SCADA connectivity and data access
• MacroView.Common: Utility classes and common infrastructure
• MacroView.Graphics: Custom graphics widget library (50+ types)
• MacroView.Reports: Report extensions and data binding
• MacroView.Script: Metascript runtime and debugging
• MacroView.Windows: Windows Forms extensions and utilities

Development Tools

• Build System: MSBuild with Visual Studio 2010+
• Version Control: Subversion (SVN) with Visual SourceSafe integration
• Code Signing: Strong-name assembly signing for security
• Licensing: DeployLX licensing framework for commercial distribution
• Deployment: Windows Installer (MSI) with custom actions

Architecture Decision Records

Why MDI Instead of Tabbed Interface Only?

• MDI provides flexibility for tiling and cascading windows
• TabbedMDIManager adds modern tab bar while retaining MDI benefits
• Professional IDEs (Visual Studio, Eclipse) use similar hybrid approach
• Allows side-by-side comparison of graphics and reports

Why Syncfusion Diagram Over WPF/Custom Drawing?

• Project initiated when WPF was immature (2003-2005)
• Syncfusion provided complete diagramming framework
• Vector graphics with zoom/pan out-of-the-box
• Extensive node library saved years of development
• Mature product with proven stability

Why ActiveReports Over SSRS?

• Embeddable designer control for in-IDE editing
• No external server dependencies (SSRS requires SQL Server)
• Better print layout control for industrial applications
• Royalty-free runtime distribution
• Mature .NET integration

Why Custom VNC Over RDP?

• Cross-platform support (Linux SCADA servers)
• Lightweight protocol suitable for industrial networks
• Controllable security model
• No Windows licensing implications

4. Subsystems and Components

4.1 Graphics Editing Subsystem

Purpose: Create and edit industrial HMI graphics with visual designer and comprehensive widget library.

Key Components:

• GraphicEditor: Main form hosting diagram and toolbars
• MacroViewDiagram: Syncfusion Diagram wrapper with MacroView extensions
• DgtModel: Root graphics document containing all objects
• Dgt hierarchy: 50+ widget types (shapes, controls, animations)
• Drawing tools: Select, Pan, Zoom, Line, Arc, Rectangle, Polygon, etc.

Widget Categories:

Design Pattern: Composite + Template Method

• All widgets inherit from Dgt abstract base class
• DgtModel contains tree of IDgtObject instances
• Rendering pipeline handles nested groups recursively

Key Features:

• Snap to Grid: Align objects to grid points for precise layout
• Alignment Tools: Align left/right/top/bottom/center/middle
• Distribution Tools: Space objects evenly across/down
• Grouping: Group multiple objects for manipulation as one
• Layers: Organize complex graphics with multiple layers
• Z-Order: Bring forward/back, send to front/back
• Rotation: Rotate individual objects or groups
• Flip: Horizontal and vertical flipping
• Copy/Paste: Clipboard support with formatting preservation

File Format: Proprietary DGT (Dynamic Graphic Text) format

• Text-based for version control compatibility
• Hierarchical structure mirrors object tree
• Extensible metadata sections

Performance Optimizations:

• Double Buffering: Eliminates flicker during redraws
• Dirty Rectangle: Only redraw changed regions
• Layer Caching: Cache rendered layers as bitmaps
• Viewport Culling: Skip objects outside visible area

4.2 Report Design Subsystem

Purpose: Create data-driven reports with visual designer supporting multiple export formats.

Key Components:

• ReportEditor: MDI child hosting ActiveReports designer
• ReportDesigner: ActiveReports designer control
• ReportTemplate: MacroView wrapper for ActiveReports document
• ReportViewer: Preview and export dialog
• Export commands: PDF, Excel, HTML, RTF, Text

Design Patterns:

• Command Pattern: Export operations as discrete commands
• Strategy Pattern: Different export strategies per format
• Adapter Pattern: Bridge MacroView data to ActiveReports

Report Sections:

• Report Header: Printed once at beginning
• Page Header: Printed at top of each page
• Group Header: Printed before each group
• Detail: Repeated for each data row
• Group Footer: Printed after each group
• Page Footer: Printed at bottom of each page
• Report Footer: Printed once at end

Data Binding:

// Example: Binding report to SCADA data
ReportTemplate report = new ReportTemplate();
report.DataSource = connection.ExecuteQuery(
    "SELECT timestamp, temperature, pressure " +
    "FROM historian " +
    "WHERE timestamp BETWEEN @start AND @end"
);

// Add parameters
report.Parameters.Add(new ReportParameter("start", ReportParameterType.DateTime));
report.Parameters.Add(new ReportParameter("end", ReportParameterType.DateTime));

// User prompted for parameters at runtime
report.Show();

Export Capabilities:

• PDF: High-quality print output
• Excel: Editable spreadsheets with formatting
• HTML: Web-viewable reports
• RTF: Word-compatible documents
• Text: Plain text for logging

4.3 Script Editing Subsystem

Purpose: Edit and debug Metascripts (MacroView’s proprietary scripting language).

Key Components:

• StudioMetascriptEditor: MDI child for script editing
• MetascriptEditControl: Syncfusion syntax-highlighted editor
• Metascript: Script document and runtime
• DataGridForm: Test harness for script execution

Key Features:

• Syntax Highlighting: Keywords, strings, comments color-coded
• IntelliSense: Auto-completion for functions and variables
• Breakpoints: Set breakpoints for debugging
• Variable Inspection: View variable values during execution
• Data Grid Integration: Execute scripts with live data for testing
• Error Reporting: Compile-time and runtime error messages

Metascript Language Capabilities:

• Variables, arrays, and structures
• Conditional logic (if/else, switch)
• Loops (for, while, do-while)
• Functions and procedures
• SCADA data access functions
• Date/time manipulation
• String processing
• Mathematical operations

4.4 Remote File Management Subsystem

Purpose: Browse, open, and save files on remote SCADA servers without local file copies.

Key Components:

• ServerFileDialog: Custom file browser for server file systems
• MacroViewConnection: TCP/IP connection to SCADA server
• IFile interface: Abstraction for local and remote files
• Progress indicators for long file operations

Design Pattern: Proxy Pattern

• IFile interface hides local vs. remote distinction
• Editors work with IFile abstraction
• Transparent handling of server-side saves

Benefits:

• No local file copies required
• Immediate deployment to production
• Version control via server timestamps
• Concurrent access prevention via file locking

4.5 VNC Remote Desktop Subsystem

Purpose: Access remote HMI displays and SCADA servers directly within IDE.

Key Components:

• VncForm: MDI child displaying remote desktop
• VNC Protocol implementation
• Mouse/keyboard event forwarding
• Screen update rendering

Use Cases:

• View live HMI while editing graphics
• Debug scripts on production systems
• Remote system administration
• Training and demonstrations

Protocol Features:

• Compression: Reduce bandwidth for slow networks
• Encryption: Secure connections to sensitive systems
• Scaling: Fit remote desktop to window size
• Color Depth: Adjust quality for performance

4.6 Docking & UI Framework Subsystem

Purpose: Provide professional IDE experience with dockable panels, context-sensitive toolbars, and flexible workspace layouts.

Key Components:

• DockingManager: Manages dockable tool panels
• BarManager: Context-sensitive menus and toolbars
• TabbedMDIManager: Tabbed document interface
• PropertyEditor: Object inspector for selected items
• DgtPartsControl: Widget palette with categories

Dockable Panels:

• Properties: Edit selected object properties
• Widget Palette: Drag-and-drop graphics widgets
• Report Explorer: Navigate report sections
• Document Outline: Tree view of graphic hierarchy
• Output: Build messages and errors

Context-Sensitive Menus:

• Menus/toolbars adapt to active editor
• Graphic editor: Drawing tools, alignment
• Report editor: Formatting, data binding
• Script editor: Debug, execute

Workspace Layouts:

• Save/restore panel positions
• Multiple predefined layouts
• Full-screen mode for presentations

5. Design Patterns and Best Practices

Core Design Patterns Summary

SOLID Principles Application

Single Responsibility Principle (SRP)

Each class has focused responsibility:

• GraphicEditor: Graphics editing UI
• DgtModel: Graphics document model
• ServerFileDialog: Server file browsing
• MacroViewConnection: SCADA connectivity

Open/Closed Principle (OCP)

Open for extension, closed for modification:

• Adding new widget: Extend Dgt base class
• Adding new editor: Implement IStudioFileEditor
• Adding new export format: Create AbstractExportToFileCommand subclass

Liskov Substitution Principle (LSP)

Derived classes substitutable for base:

• All Dgt subclasses render via Render(Graphics) method
• All editors work with IFile abstraction
• All export commands implement Execute() method

Interface Segregation Principle (ISP)

Clients depend only on needed methods:

• IStudioFileEditor: Minimal interface for file editors
• IDgtObject: Core graphic object contract
• IFile: Abstraction for file access

Dependency Inversion Principle (DIP)

Depend on abstractions:

• Editors depend on IFile interface, not concrete file classes
• Main form depends on IStudioFileEditor, not specific editors
• Graphics depend on IDgtObject, not concrete widget classes

Code Organization

MacroView.Studio/
├── MacroViewStudioForm.cs        # MDI parent application
├── MacroViewStudioOptions.cs     # Application settings
├── MacroViewStudioInstaller.cs   # Deployment custom actions
│
├── Editors/
│   ├── GraphicEditor.cs          # DGT file editor
│   ├── ReportEditor.cs           # REP file editor
│   ├── StudioMetascriptEditor.cs # MS file editor
│   └── IStudioFileEditor.cs      # Common interface
│
├── Graphics/                     # Graphics subsystem
│   ├── DgtModel.cs               # Graphics document
│   ├── Dgt.cs                    # Base widget class
│   ├── Dgt*.cs                   # 50+ widget implementations
│   ├── Design/                   # Designer infrastructure
│   │   ├── DgtTypeConverter.cs
│   │   ├── DgtPropertyDescriptor.cs
│   │   └── DgtUITypeEditor.cs
│   └── Tools/                    # Drawing tools
│       ├── SelectTool.cs
│       ├── RectangleTool.cs
│       └── ...
│
├── Reports/                      # Reporting subsystem
│   ├── ReportTemplate.cs         # Report document
│   ├── ReportDesigner.cs         # Designer control
│   ├── ReportViewer.cs           # Preview dialog
│   ├── Export*Command.cs         # Export implementations
│   └── DataSourceForm.cs         # Data binding UI
│
├── ServerFileDialog.cs           # Remote file browser
├── DgtPartsControl.cs            # Widget palette
├── MacroViewDiagram.cs           # Syncfusion diagram wrapper
│
└── Vnc/                          # VNC subsystem
    ├── Protocol/                 # VNC protocol
    └── Windows.Forms/            # VNC viewer control

Testing Strategy

Unit Testing:

• Widget rendering isolated from UI
• File serialization/deserialization
• Report generation logic
• Script parsing and execution

Integration Testing:

• Server connection and file operations
• Graphics loading/saving round-trip
• Report data binding end-to-end
• VNC protocol handshake

Manual Testing:

• UI/UX testing in real scenarios
• Performance testing with large graphics
• Compatibility testing across SCADA versions
• Remote file operations over slow networks

Error Handling Approach

Defensive Programming:

public void SaveGraphic(IFile file)
{
    // Validate preconditions
    if (file == null)
        throw new ArgumentNullException(nameof(file));

    if (!file.CanWrite)
        throw new InvalidOperationException("File is read-only");

    // Check for unsaved dependencies
    if (HasUnsavedBitmaps())
    {
        var result = MessageBox.Show(
            "Graphics contains unsaved bitmaps. Save them now?",
            "Unsaved Bitmaps",
            MessageBoxButtons.YesNoCancel
        );

        if (result == DialogResult.Cancel)
            return;
        if (result == DialogResult.Yes)
            SaveAllBitmaps();
    }

    try
    {
        using (Stream stream = file.OpenWrite())
        {
            DgtModel.Save(stream);
        }

        OnSaveSucceeded();
    }
    catch (IOException ex)
    {
        MessageBox.Show($"File save failed: {ex.Message}", "Error",
            MessageBoxButtons.OK, MessageBoxIcon.Error);
        LogError(ex);
    }
    finally
    {
        UpdateModifiedFlag(false);
    }
}

Error Handling Strategy:

1. Validation: Check preconditions before operations
2. User Notification: Clear, non-technical error messages
3. Logging: Comprehensive diagnostic logging to trace file
4. Graceful Degradation: Partial results when possible
5. Recovery: Automatic reconnection on connection loss
6. Data Preservation: Auto-save and crash recovery

Performance Optimizations

Graphics Rendering:

• Double Buffering: All drawing to off-screen buffer
• Dirty Regions: Track and redraw only changed areas
• Layer Caching: Render static layers to bitmaps
• LOD (Level of Detail): Simplify graphics when zoomed out

File Operations:

• Async I/O: Background threads for network file operations
• Progress Feedback: Keep UI responsive during long operations
• Caching: Cache frequently accessed server files
• Compression: Compress data for network transfers

Memory Management:

• Dispose Pattern: Properly release unmanaged resources
• Weak References: Allow GC to collect cached data
• Object Pooling: Reuse frequently allocated objects
• Stream Handling: Use using statements consistently

6. Notable Technical Achievements

1. Comprehensive Widget Library (50+ Types)

Challenge: Create extensive library of industrial HMI widgets with consistent behavior and customization.

Solution:

• Abstract Dgt base class defines rendering pipeline
• Template method pattern for common widget operations
• Property descriptors for consistent property grid integration
• Type converters for custom serialization

Innovation:

• Dynamic Properties: Properties appear/disappear based on widget state
• Data Binding: Widgets connect to live SCADA data
• Animation Framework: Time-based animations with easing functions
• Custom Editors: UITypeEditors for complex properties (colors, fonts, data sources)

Technical Highlights:

// Extensible widget system
public abstract class Dgt : Node, IDgtObject
{
    // Template method for rendering
    public void Render(Graphics graphics)
    {
        if (!Visible || Layer != VisibleLayer)
            return;

        PrepareTransform(graphics); // Rotation, scaling
        RenderBackground(graphics); // Fill
        RenderContent(graphics);    // Widget-specific (abstract)
        RenderBorder(graphics);     // Outline
        RenderOverlays(graphics);   // Selection, handles
    }

    // Extensibility points
    protected abstract void RenderContent(Graphics graphics);
    protected virtual void PrepareTransform(Graphics graphics) { }
    protected virtual void RenderBackground(Graphics graphics) { }
}

// Concrete widget implementation
public class DgtChartWidget : Dgt
{
    protected override void RenderContent(Graphics graphics)
    {
        // Draw chart axes
        DrawAxes(graphics);

        // Draw each pen series
        foreach (var pen in Pens)
        {
            if (pen.Data != null)
                DrawSeries(graphics, pen);
        }

        // Draw legend
        DrawLegend(graphics);
    }
}

2. Seamless Server File Integration

Challenge: Enable transparent editing of remote files as if they were local.

Solution:

• IFile interface abstracts local vs. remote files
• ServerFileDialog provides familiar file browser experience
• Background thread pools for async network operations
• Progress callbacks keep UI responsive

Architectural Elegance:

• Editors completely unaware of file location
• Single code path for save/load operations
• Automatic network retry with exponential backoff
• Connection multiplexing for concurrent operations

Benefits:

• Zero Deployment Time: Save directly to production
• No File Synchronization: Always editing latest version
• Audit Trail: Server logs all file operations
• Concurrent Access Prevention: File locking prevents conflicts

3. Multi-Format Report Export

Challenge: Generate professional reports in multiple formats (PDF, Excel, HTML, RTF, Text) from single source.

Solution:

• Command Pattern: Each export format as discrete command
• ActiveReports Engine: Handles rendering complexity
• Extension Properties: Custom metadata for MacroView-specific features
• Parameter System: Runtime parameter entry for flexible reports

Export Quality:

• PDF: Vector graphics for scalable output
• Excel: Maintains cell formatting and formulas
• HTML: CSS-styled for web display
• RTF: Word-compatible with embedded images
• Text: Plain text for log analysis

Technical Achievement:

// Unified export interface
public abstract class AbstractExportToFileCommand : ICommand
{
    public void Execute()
    {
        SaveFileDialog dialog = CreateSaveDialog();

        if (dialog.ShowDialog() == DialogResult.OK)
        {
            using (var doc = new ActiveReport())
            {
                doc.LoadLayout(ReportTemplate.Stream);
                doc.Run();

                ExportToFormat(doc, dialog.FileName);

                MessageBox.Show($"Export to {Format} completed successfully.");
            }
        }
    }

    protected abstract string Format { get; }
    protected abstract void ExportToFormat(ActiveReport report, string filename);
}

// Specific export implementation
public class ExportToPDFCommand : AbstractExportToFileCommand
{
    protected override string Format => "PDF";

    protected override void ExportToFormat(ActiveReport report, string filename)
    {
        var pdf = new DataDynamics.ActiveReports.Export.Pdf.PdfExport();
        pdf.Export(report.Document, filename);
    }
}

4. Integrated VNC Remote Desktop

Challenge: Provide remote HMI access within IDE for testing and debugging.

Solution:

• Custom VNC protocol implementation
• Efficient screen update algorithm (RFB protocol)
• Keyboard/mouse event forwarding
• MDI integration as document window

Innovation:

• Parallel Editing: View live HMI while editing graphics
• Copy/Paste Integration: Copy graphics from live HMI
• Remote Debugging: Execute scripts on live system
• Training Mode: Demonstrate features on live equipment

5. Advanced Docking Framework

Challenge: Provide Visual Studio-like docking experience with flexible panel management.

Solution:

• Syncfusion DockingManager: Professional docking framework
• Persistence: Save/restore panel layouts
• Auto-Hide: Panels collapse to edges when not in use
• Tab Groups: Multiple panels in same dock region

User Experience:

• Drag-and-drop: Intuitive panel repositioning
• Multiple Monitors: Panels detach to secondary displays
• Keyboard Navigation: Alt+Tab between documents, Ctrl+Tab between panels
• Customizable: Users create personal workspace layouts

6. Context-Sensitive UI

Challenge: Adapt menus, toolbars, and panels based on active document type.

Solution:

• BarManager: Dynamically build menus per editor
• Property Grid Integration: Reflect active selection
• Status Bar: Display context-appropriate information
• Help Integration: F1 shows help for current context

Technical Implementation:

// Context-sensitive menu building
public class MacroViewStudioForm : Form
{
    private void ActivateMdiChild(Form child)
    {
        // Remove current menus
        barManager.RemoveChildBars();

        // Add editor-specific menus
        if (child is GraphicEditor graphicEditor)
        {
            barManager.Merge(graphicEditor.BarManager);
            dockingManager.SetActiveDockableHost(graphicEditor.DockingHost);
        }
        else if (child is ReportEditor reportEditor)
        {
            barManager.Merge(reportEditor.BarManager);
        }

        // Update property editor
        propertyEditor.SelectedObject = GetActiveSelection(child);
    }
}

7. Business Value and Impact

Operational Benefits

Reduced Development Time:

• Unified IDE eliminates tool switching
• Drag-and-drop interface accelerates graphic creation
• Copy/paste and templates enable reuse
• Estimated Impact: 40-60% faster development vs. separate tools

Improved Quality:

• Visual WYSIWYG editors reduce errors
• Syntax highlighting catches script errors early
• Live preview shows exact output
• Estimated Impact: 30-50% fewer deployment issues

Enhanced Maintainability:

• Single tool to learn and support
• Version control integration for all assets
• Consistent file formats across projects
• Estimated Impact: 20-30% reduced support costs

Technical Excellence

Code Quality Metrics:

• 487 C# source files (~158,000 LOC)
• Comprehensive object model with 50+ widget types
• Extensive use of design patterns
• Strong typing and encapsulation throughout

Maintainability:

• Clear separation of concerns
• Modular architecture enables independent updates
• Comprehensive inline documentation
• Consistent naming and coding standards

Extensibility:

• Plugin architecture for new editors
• Extensible widget library
• Custom tool integration via BarManager
• Scriptable automation via Metascripts

8. Deployment and Scalability

Deployment Model

Installation:

• Windows Installer (MSI) with custom actions
• Optional server-side components
• Strong-name signed assemblies
• License activation via DeployLX

Prerequisites:

• .NET Framework 4.0 or higher
• Windows Vista/7/8/10 (32-bit or 64-bit)
• 1 GB RAM minimum (2 GB recommended)
• 500 MB disk space
• Network connectivity for server features

Configuration:

• Per-user settings in isolated storage
• XML-based configuration files
• Registry-free installation option
• Portable mode for USB deployment

Scalability Considerations

Graphics Complexity:

• Supports 1000+ objects per graphic
• Hierarchical grouping for organization
• Layer-based rendering for performance
• Tested with production HMIs (500-2000 objects)

Concurrent Development:

• Multiple developers via server-side files
• File locking prevents conflicts
• Timestamp-based conflict detection
• Merge tools for resolving conflicts

Network Efficiency:

• File operations optimized for WAN
• Compression for large transfers
• Resume capability for interrupted transfers
• Local caching of server file lists

9. Conclusion

MacroView Studio represents a mature, professional-grade IDE demonstrating:

• Architectural Excellence: MDI framework, design patterns, extensible architecture
• Domain Expertise: Deep understanding of industrial automation requirements
• Technical Breadth: Graphics, reporting, scripting, networking, remote access
• User-Centric Design: Professional UI, context-sensitive menus, flexible layouts
• Enterprise Quality: Robust error handling, comprehensive testing, commercial licensing
• Business Impact: Measurable improvements in development speed and quality

This project showcases the ability to:

• Design complex, multi-subsystem desktop applications
• Integrate diverse third-party components into cohesive product
• Apply software engineering principles at enterprise scale
• Balance technical excellence with user experience
• Deliver commercial-quality industrial software

The codebase demonstrates mastery of:

• Object-oriented design and design patterns
• Windows desktop application development
• Graphics and visualization systems
• Network programming and distributed systems
• Software architecture and system design

Appendix: Key Metrics

Technology Evolution Timeline

Contact and Portfolio

This documentation was generated to showcase MacroView Studio as part of a professional software development portfolio. The application demonstrates enterprise-level IDE development with industrial automation expertise.

Development Period: 2003-2009 (Primary development) with ongoing maintenance Technology Era: .NET Framework 2.0-4.0 generation Domain: Industrial Automation / SCADA Development Tools Application Type: Multi-Document Interface (MDI) Desktop IDE
